Products Description:

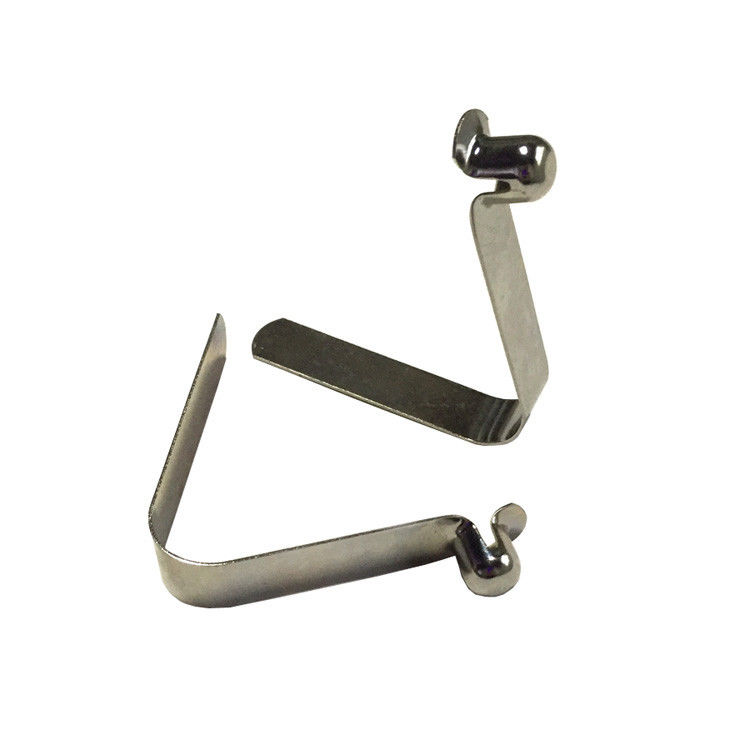

Awning Pole Spring Clip Pole Retaining Snap Buttons Tent Pole Clips Locking Tube Pin
These items can be used in square or round tubes that are put together in a telescopic design.
These items are made of Manganese Silicon Spring Steel, which will resist stretching or losing its spring following rigorous use.
size refers to button diameter:
5/6/7/8/9/10 MM single pin buttons.
6/8/9/10 MM single pin (solid) buttons.
5/6/7/8/9/10 MM double pin buttons.
6/8/9/10 MM double pin (solid) buttons.
Awning Pole Spring Clip Pole Retaining Snap Buttons Tent Pole Clips Locking Tube Pin
|
Item
|
8mm Push Button Lock Spring Locking Pin |
| Thickness | 0.6 mm / 0.02 inch |
| Button Diameter: | Approx 8 mm / 0.31 inch |
| Button Height: | Approx. 9.5 mm / 0.37 inch |
| Width: | 10.8 mm / 0.42 inch |
| Angel: | 50 Degrees |
| Applicable tube’s ID: | 22~38 mm ( 0.86'~1.49' ) |
| Material | 65Mn steel |
| Part weight | 4.7 g |
| Finish: | Nickel plated |
| Sample | Free sample, sample time 4-6 days , mass production: 6~10 days |
| Packing: | Inner plastic bag (1000pcs per bag), outer carton box (4000pcs per carton ) |
| Application: | Tent, beach umbrella, fitnees equipment, police equipment, medical equipment, children's car, toys, display rack, photographic equipment, kayaking, outdoor movie screen |
Specification of V Spring Clips
| Item | Type | Specification | Material | Surface Finishing | Weight(g) | Applicable Tube's ID | |||||
| Diameter (D) | Thicness (W) | Width (W) | Length (L) | Angle (a) | Height (H) | ||||||
| 1 | 5V-Ⅰ-0.4T (sigle button) | 5mm | 0.4mm | 6.5mm | 28mm | ∠a=50 | 7.0mm | 65Mn | nickel plated | 1.35~1.38 | ￠10-16mm |
| 2 | 5V-Ⅱ-0.4T (double button) | 5mm | 0.4mm | 6.5mm | 37mm | ∠a=50 | 7.0mm | 65Mn | nickel plated | 1.35~1.38 | ￠10-16mm |
| 3 | 5V-Ⅰ-0.5T (sigle button) | 5mm | 0.5mm | 6.5mm | 30mm | ∠a=50 | 7.0mm | 65Mn | nickel plated | 1.65~1.7 | ￠10-20mm |
| 4 | 5V-Ⅱ-0.5T (double button) | 5mm | 0.5mm | 6.5mm | 38mm | ∠a=50 | 7.0mm | 65Mn | nickel plated | 1.85~1.9 | ￠16-22mm |
| 5 | 6V-Ⅰ-0.4T (sigle button) | 6mm | 0.4mm | 8.4mm | 38mm | ∠a=50 | 8.5mm | 65Mn | nickel plated | 2.45~2.5 | ￠14-24mm |
| 6 | 6V-Ⅰ-0.5T (sigle button) | 6mm | 0.5mm | 8.4mm | 38mm | ∠a=50 | 8.5mm | 65Mn | nickel plated | 2.65~2.7 | ￠14-24mm |
| 7 | 6V-Ⅰ-0.5T (sigle button) | 6mm | 0.5mm | 7.3mm | 38mm | ∠a=50 | 8.5mm | Stainless steel | / | 2.65~2.7 | ￠14-24mm |
| 8 | 6V-Ⅱ-0.5T (double button) | 6mm | 0.5mm | 8.4mm | 38mm | ∠a=50 | 8.0mm | 65Mn | nickel plated | 2.85~2.9 | ￠18-24mm |
| 9 | 6V-Ⅱ-0.5T (double button) | 6mm | 0.5mm | 7.2mm | 45mm | ∠a =100~ 120 | 8.0mm | Stainless steel | / | 2.98~3.0 | ￠18-30mm |
| 10 | 7V-Ⅰ-0.5T (sigle button) | 7mm | 0.5mm | 9.6mm | 44mm | ∠a=50 | 9.0mm | 65Mn | nickel plated | 3.6~3.7 | ￠18-28mm |
| 11 | 7V-Ⅱ-0.5T (double button) | 7mm | 0.5mm | 9.6mm | 44mm | ∠a=50 | 9.0mm | 65Mn | nickel plated | 4.1~4.2 | ￠22-28mm |
| 12 | 8V-Ⅰ-0.5T (sigle button) | 8mm | 0.5mm | 10.8mm | 50mm | ∠a=50 | 9.5mm | 65Mn | nickel plated | 4.45~4.5 | ￠22-38mm |
| 13 | 8V-Ⅰ-0.5T (sigle button) | 8mm | 0.5mm | 10.3mm | 50mm | ∠a=50 | 9.0mm | Stainless steel | / | 4.45~4.5 | ￠22-38mm |
| 14 | 8V-Ⅱ-0.5T (double button) | 8mm | 0.5mm | 10.8mm | 50mm | ∠a=50 | 9.5mm | 65Mn | nickel plated | 4.85~4.9 | ￠24-34mm |
| 15 | 8V-Ⅰ-0.6T (sigle button) | 8mm | 0.6mm | 10.8mm | 50mm | ∠a=50 | 9.5mm | 65Mn | nickel plated | 4.65~4.7 | ￠22-38mm |
| 16 | 8V-Ⅱ-0.6T (double button) | 8mm | 0.6mm | 10.8mm | 50mm | ∠a=50 | 9.5mm | 65Mn | nickel plated | 4.95~5.1 | ￠24-40mm |
| 17 | 9V-Ⅰ-0.6T (sigle button) | 9mm | 0.6mm | 13mm | 60mm | ∠a=60 | 11.0mm | 65Mn | nickel plated | 7.6~7.9 | ￠30-50mm |
| 18 | 9V-Ⅱ-0.6T (double button) | 9mm | 0.6mm | 13mm | 60mm | ∠a=60 | 11.0mm | 65Mn | nickel plated | 8.8~9.1 | ￠40-60mm |
| 19 | 10V-Ⅰ-0.7T (sigle button) | 10mm | 0.7mm | 13mm | 60mm | ∠a=60 | 12.0mm | 65Mn | nickel plated | 9.8~9.9 | ￠40-60mm |
| 20 | 10V-Ⅱ-0.7T (double button) | 10mm | 0.7mm | 13mm | 60mm | ∠a=60 | 12.0mm | 65Mn | nickel plated | 9.8~9.9 | ￠40-60mm |
| Remark: 1.These spring clip used for all kind of round tube and square tube of diameter 6-50mm | |||||||||||
| 2.We can customize D6 and D8mm sigle and double botton with material sus304 | |||||||||||
Products Show:
Awning Pole Spring Clip Pole Retaining Snap Buttons Tent Pole Clips Locking Tube Pin
FAQ:
Q1: Are you a factory or a trading company?
A1: We are an OEM manufacturer of spring and stamping part with 15years.
Q2: Do you offer custom service?
A2: Yes, it's our job, send us your specification or drawings, and we will make you perfect products. Or tell us your idea for
getting a design from us.
Q3: How can I get a sample for quality check?
A3: After price confirmation, you can require for samples to check our product's quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
Q4: Could I ask for samples before the bulk production?
A4: Why not, we all concern the quality, and it's the way to get rid of getting poor quality.
Q5: Which methods of payment do you accept?
A5: T/T, L/C, Western Union, and Alibaba Trade Assurance.
Q6: What is your lead time?
A6: 3-7days for samples, 7-15days for mass production
