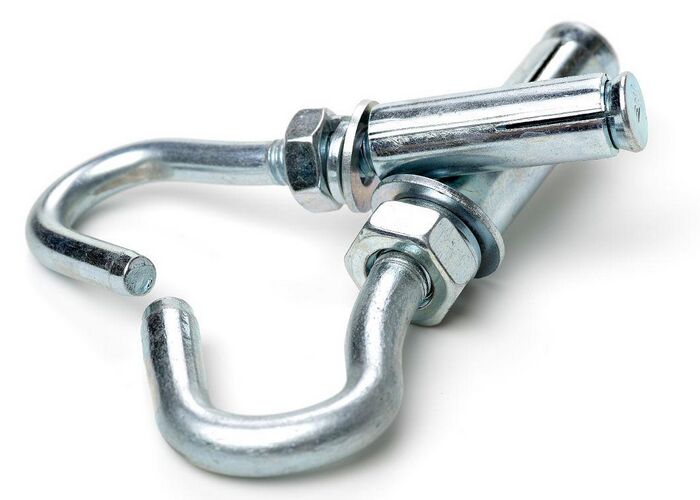

Hot-Dip Galvanized J-Type Anchor metal Bolt M30 with Zinc-Flake Coating for Heavy Equipment Foundation Fixing

A hook bolt is a specialized fastener characterized by its curved, hook-shaped end, designed primarily for securing objects to structural members or creating temporary or permanent anchor points where conventional straight bolts cannot provide adequate retention. In construction and industrial applications, the hook configuration serves several distinct functional purposes that address specific installation challenges and load transfer requirements.

The primary function of a hook bolt involves creating a mechanical interlock with the supporting structure. Unlike standard bolts that rely entirely on clamping force and friction, the hooked end engages physically with the edge of a beam flange, the rung of a ladder, or an embedded anchor point, preventing disengagement under tension loads. This interlocking mechanism proves particularly valuable in applications where vibration, dynamic loading, or accidental impact might cause conventional fasteners to loosen or withdraw completely.

In concrete construction, hook bolts frequently serve as embedded anchors cast into wet concrete or grouted into pre-drilled holes. The curved end distributes tensile forces throughout the concrete mass rather than concentrating stress at a single point, significantly enhancing pull-out resistance. When subjected to uplift forces from wind, equipment operation, or structural overturning moments, the hook shape develops bearing pressure against the concrete surrounding the bend, mobilizing a larger volume of material to resist extraction. This behavior makes hook bolts especially effective for anchoring structural steel columns, machinery bases, and equipment supports where tension and shear forces act simultaneously.
