Product Details
Place of Origin: China
Brand Name: JIA SHAN
Certification: ISO 9001
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: 0.01-11
Packaging Details: plastic Bag+Chipboard Carton+Plywood Pallet Pallet with Belt&Plastic Film/ Customized as your requirements
Delivery Time: 5-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
|
Package Quantity:
|
100 Pieces
|
Color:
|
Customized/Silver/Plain
|
Material:
|
Steel
|
Thread Pitch:
|
Customized
|
Corrosionresistance:
|
High/Customized
|
Headtype:
|
Shoulder Bolt
|
Port:
|
Shenzhen, Guangzhou
|
Common Uses:
|
Construction, Automotive, Machinery
|
Finish:
|
Plain/ Polish
|
Thread Type:
|
Mechined Thread
|
Rust Proof:
|
Yes
|
Manufacturer:
|
Various Manufacturers
|
|
Package Quantity:
|
100 Pieces
|
|
Color:
|
Customized/Silver/Plain
|
|
Material:
|
Steel
|
|
Thread Pitch:
|
Customized
|
|
Corrosionresistance:
|
High/Customized
|
|
Headtype:
|
Shoulder Bolt
|
|
Port:
|
Shenzhen, Guangzhou
|
|
Common Uses:
|
Construction, Automotive, Machinery
|
|
Finish:
|
Plain/ Polish
|
|
Thread Type:
|
Mechined Thread
|
|
Rust Proof:
|
Yes
|
|
Manufacturer:
|
Various Manufacturers
|

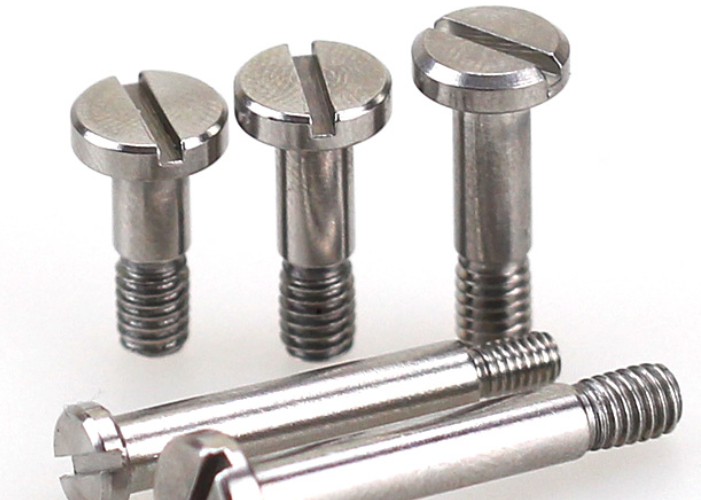

M20 Monel Marine Shoulder metal Bolt Saltwater Resistant austenitic stainless steel304 306head
1,Description:
Shoulder screw are also called shaft shoulder screws, stop screws, stop bolts, brake bolts, equal-height screws, etc. The shoulder screw is used in conjunction with the bolt pull rod and is mainly used as a mold accessory to control the opening stroke between the fixed mold seat plate, the runner push plate and the fixed mold template in the three-plate mold.
Because it can be set on the parting surface of the mold, the mold design can be miniaturized. This type of product features high hardness, good toughness, excellent wear resistance and heat resistance. It is suitable for precision molds and can significantly extend their service life. Especially, the thermal deformation of precision molds has been effectively controlled, making it suitable for molds in high-temperature working environments Its standard is ISO 7379. The material of the 12.9 grade plug screw is SCM435 alloy steel, with an overall hardness of HRC40°
The shoulder screw is used in conjunction with the bolt pull rod and is mainly used as a mold accessory to control the opening stroke between the fixed mold seat plate, the runner push plate and the fixed mold template in the three-plate mold.
Because it can be set on the parting surface of the mold, the mold design can be miniaturized. This type of product features high hardness and toughness, as well as good wear resistance and heat resistance. It is suitable for precision molds and helps to extend their service life, especially playing a certain role in controlling the thermal deformation of precision molds. It is applicable to molds in high-temperature working environments.
2,Applications:
When installing the shoulder screws, it should be noted that the shaft diameter is a matching specification, which can facilitate the selection of shoulder screws and bolt tie rods. For example, when using D20 stop bolts, it is recommended to use D20 bolt tie rods. When the shoulder screw is used for the thickness of the seat plate, the bolt head is designed to be embedded in the seat plate by 2mm. Therefore, the relationship between the depth W of the countersunk hole and the stroke S is W equal to S plus the thickness K of the plug screw shoulder plus 2, and L equal to the thickness of the seat plate minus the thickness K of the stop bolt shoulder plus 2. When using the thickness of the flow channel push plate, the thread length of the shoulder screw embedded in the bolt pull rod is set to 1.5 times the thread diameter
3,Technical Advantages
Austenitic Stainless Steel (Austenitic Stainless Steel) refers to stainless steel that has an austenitic structure at room temperature. When steel contains approximately 18% Cr, 8% to 25% Ni, and 0.1% C, it has a stable austenitic structure. Austenitic stainless steel is non-magnetic and has high toughness and plasticity, but its strength is relatively low. It cannot be strengthened through phase transformation and can only be strengthened by cold working. If elements such as S, Ca, Se, and Te are added, it will have good machinability.
Available in small packing, carton packing, or pallet configurations to meet your shipping and storage requirements.
Manufactured by JIA SHAN Hardware Company with strict quality control measures and pre-shipment inspection.
