Products Description:

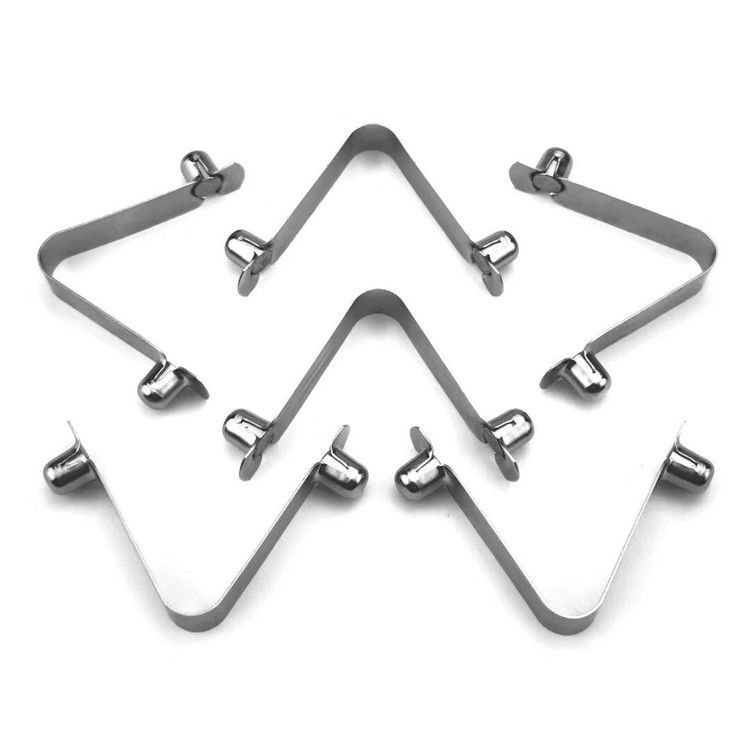

Tent Pole Puch Button Spring Snap Clip Kayak Paddle Push Button Clips 8mm Double Solid Pins
Description: Item 14# 8V-II-0.5T Double Solid Pins
Material: 65Mn Spring Steel
Applicable tube’s ID: 24~34 mm ( 0.94'~1.49' )
Quickly snap into place in round or square tubing.
Help reduce assembly time and eliminate the need for rivets and screws.
Made from steel, which will resist stretch to ensure long-term use.
Tent Pole Puch Button Spring Snap Clip Kayak Paddle Push Button Clips 8mm Double Solid Pins
|
Item
|
8mm Push Button Lock Spring Locking Pin |
|
Thickness
|
0.5 mm / 0.019 inch
|
| Button Diameter: | Approx 7.88 mm/ 0.31 inch |
| Button Height: | Approx. 9.5 mm /0.37 inch |
| Width: | 10.8 mm / 0.42 inch |
| Angel: | 50 Degrees |
| Part weight | 8.5 g |
| Finish: | Nickel plated |
|
Sample
|
Free sample, sample time 4-6 days , mass production: 8~15 days
|
| Packing: | Inner plastic bag (1000pcs per bag), outer carton box (4000pcs per carton ) |
| Application: | Tent, beach umbrella, fitnees equipment, police equipment, medical equipment, children's car, toys, display rack, photographic equipment, kayaking, outdoor movie screen |
Specification of V Spring Clips
| Item | Type | Specification | Material | Surface Finishing | Weight(g) | Applicable Tube's ID | |||||
| Diameter (D) | Thicness (W) | Width (W) | Length (L) | Angle (a) | Height (H) | ||||||
| 1 | 5V-Ⅰ-0.4T (sigle button) | 5mm | 0.4mm | 6.5mm | 28mm | ∠a=50 | 7.0mm | 65Mn | nickel plated | 1.35~1.38 | ￠10-16mm |
| 2 | 5V-Ⅱ-0.4T (double button) | 5mm | 0.4mm | 6.5mm | 37mm | ∠a=50 | 7.0mm | 65Mn | nickel plated | 1.35~1.38 | ￠10-16mm |
| 3 | 5V-Ⅰ-0.5T (sigle button) | 5mm | 0.5mm | 6.5mm | 30mm | ∠a=50 | 7.0mm | 65Mn | nickel plated | 1.65~1.7 | ￠10-20mm |
| 4 | 5V-Ⅱ-0.5T (double button) | 5mm | 0.5mm | 6.5mm | 38mm | ∠a=50 | 7.0mm | 65Mn | nickel plated | 1.85~1.9 | ￠16-22mm |
| 5 | 6V-Ⅰ-0.4T (sigle button) | 6mm | 0.4mm | 8.4mm | 38mm | ∠a=50 | 8.5mm | 65Mn | nickel plated | 2.45~2.5 | ￠14-24mm |
| 6 | 6V-Ⅰ-0.5T (sigle button) | 6mm | 0.5mm | 8.4mm | 38mm | ∠a=50 | 8.5mm | 65Mn | nickel plated | 2.65~2.7 | ￠14-24mm |
| 7 | 6V-Ⅰ-0.5T (sigle button) | 6mm | 0.5mm | 7.3mm | 38mm | ∠a=50 | 8.5mm | Stainless steel | / | 2.65~2.7 | ￠14-24mm |
| 8 | 6V-Ⅱ-0.5T (double button) | 6mm | 0.5mm | 8.4mm | 38mm | ∠a=50 | 8.0mm | 65Mn | nickel plated | 2.85~2.9 | ￠18-24mm |
| 9 | 6V-Ⅱ-0.5T (double button) | 6mm | 0.5mm | 7.2mm | 45mm | ∠a =100~ 120 | 8.0mm | Stainless steel | / | 2.98~3.0 | ￠18-30mm |
| 10 | 7V-Ⅰ-0.5T (sigle button) | 7mm | 0.5mm | 9.6mm | 44mm | ∠a=50 | 9.0mm | 65Mn | nickel plated | 3.6~3.7 | ￠18-28mm |
| 11 | 7V-Ⅱ-0.5T (double button) | 7mm | 0.5mm | 9.6mm | 44mm | ∠a=50 | 9.0mm | 65Mn | nickel plated | 4.1~4.2 | ￠22-28mm |
| 12 | 8V-Ⅰ-0.5T (sigle button) | 8mm | 0.5mm | 10.8mm | 50mm | ∠a=50 | 9.5mm | 65Mn | nickel plated | 4.45~4.5 | ￠22-38mm |
| 13 | 8V-Ⅰ-0.5T (sigle button) | 8mm | 0.5mm | 10.3mm | 50mm | ∠a=50 | 9.0mm | Stainless steel | / | 4.45~4.5 | ￠22-38mm |
| 14 | 8V-Ⅱ-0.5T (double button) | 8mm | 0.5mm | 10.8mm | 50mm | ∠a=50 | 9.5mm | 65Mn | nickel plated | 4.85~4.9 | ￠24-34mm |
| 15 | 8V-Ⅰ-0.6T (sigle button) | 8mm | 0.6mm | 10.8mm | 50mm | ∠a=50 | 9.5mm | 65Mn | nickel plated | 4.65~4.7 | ￠22-38mm |
| 16 | 8V-Ⅱ-0.6T (double button) | 8mm | 0.6mm | 10.8mm | 50mm | ∠a=50 | 9.5mm | 65Mn | nickel plated | 4.95~5.1 | ￠24-40mm |
| 17 | 9V-Ⅰ-0.6T (sigle button) | 9mm | 0.6mm | 13mm | 60mm | ∠a=60 | 11.0mm | 65Mn | nickel plated | 7.6~7.9 | ￠30-50mm |
| 18 | 9V-Ⅱ-0.6T (double button) | 9mm | 0.6mm | 13mm | 60mm | ∠a=60 | 11.0mm | 65Mn | nickel plated | 8.8~9.1 | ￠40-60mm |
| 19 | 10V-Ⅰ-0.7T (sigle button) | 10mm | 0.7mm | 13mm | 60mm | ∠a=60 | 12.0mm | 65Mn | nickel plated | 9.8~9.9 | ￠40-60mm |
| 20 | 10V-Ⅱ-0.7T (double button) | 10mm | 0.7mm | 13mm | 60mm | ∠a=60 | 12.0mm | 65Mn | nickel plated | 9.8~9.9 | ￠40-60mm |
| Remark: 1.These spring clip used for all kind of round tube and square tube of diameter 6-50mm | |||||||||||
| 2.We can customize D6 and D8mm sigle and double botton with material sus304 | |||||||||||
Products Show:
Tent Pole Puch Button Spring Snap Clip Kayak Paddle Push Button Clips 8mm Double Solid Pins
FAQ:
Q1: Are you a factory or a trading company?
A1: We are an OEM manufacturer of spring and stamping part with 15years.
Q2: Do you offer custom service?
A2: Yes, it's our job, send us your specification or drawings, and we will make you perfect products. Or tell us your idea for
getting a design from us.
Q3: How can I get a sample for quality check?
A3: After price confirmation, you can require for samples to check our product's quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
Q4: Could I ask for samples before the bulk production?
A4: Why not, we all concern the quality, and it's the way to get rid of getting poor quality.
Q5: Which methods of payment do you accept?
A5: T/T, L/C, Western Union, and Alibaba Trade Assurance.
Q6: What is your lead time?
A6: 3-7days for samples, 7-15days for mass production
