| Place of Origin | Shezhen |
| Brand Name | KYH |
| Model Number | KYH-S1011 |
Products Description:

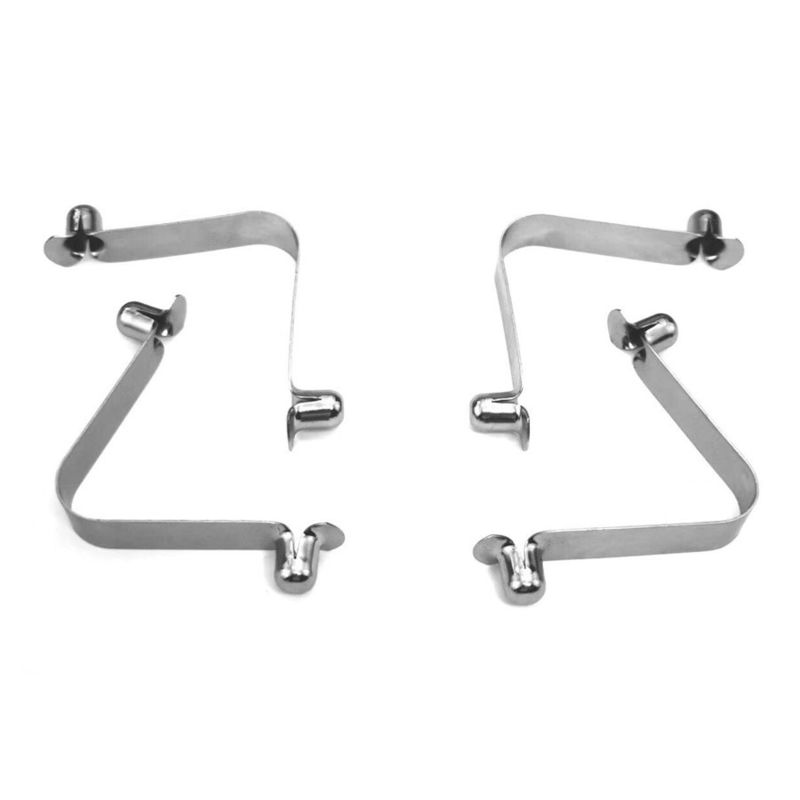

Double Pin Spring Button Clip Push Button Clip Tent Pole Push Button Spring Clips For Camping Replacement
Description: Item 14# 8V-II-0.5T double button spring clip in 65Mn steel with nickel plated
Material: 65Mn steel
Color: Silver
Button Diameter: Approx. 8 mm/0.31 inch
Button Height: Approx. 9.5mm/0.37 inch
Leg Length: Approx. 50mm/1.97inch
Applicable tube’s ID: D24~D34mm/ 0.94 inch~1.34 inch
How to use:
You only need to split the tube, bend the kayak paddle clip, put the clip into the pole, snap the button clip into the hole,
and put the outer tube until it catches the button.
Note:
Manual measurement, please allow slight errors on size.
The color may exist slight difference due to different screen displays.
Double Pin Spring Button Clip Push Button Clip Tent Pole Push Button Spring Clips For Camping Replacement
|
Item
|
8V-II-0.5T double button spring clip in 65Mn steel with nickel plated |
|
Thickness
|
0.5 mm / 0.019 inch
|
|
Material
|
65Mn steel (spring steel)
|
|
Finishing
|
Nickel plated
|
| Part weight | 4.9 g |
|
Sample
|
Free sample, sample time 3-5 days
|
| Application: | Tent, beach umbrella, fitnees equipment, police equipment, medical equipment, children's car, toys, display rack, photographic equipment, kayaking, outdoor movie screen |
Specification of V Spring Clips
| Item | Type | Specification | Material | Surface Finishing | Weight(g) | Applicable Tube's ID | |||||
| Diameter (D) | Thicness (W) | Width (W) | Length (L) | Angle (a) | Height (H) | ||||||
| 1 | 5V-Ⅰ-0.4T (sigle button) | 5mm | 0.4mm | 6.5mm | 28mm | ∠a=50 | 7.0mm | 65Mn | nickel plated | 1.35~1.38 | ￠10-16mm |
| 2 | 5V-Ⅱ-0.4T (double button) | 5mm | 0.4mm | 6.5mm | 37mm | ∠a=50 | 7.0mm | 65Mn | nickel plated | 1.35~1.38 | ￠10-16mm |
| 3 | 5V-Ⅰ-0.5T (sigle button) | 5mm | 0.5mm | 6.5mm | 30mm | ∠a=50 | 7.0mm | 65Mn | nickel plated | 1.65~1.7 | ￠10-20mm |
| 4 | 5V-Ⅱ-0.5T (double button) | 5mm | 0.5mm | 6.5mm | 38mm | ∠a=50 | 7.0mm | 65Mn | nickel plated | 1.85~1.9 | ￠16-22mm |
| 5 | 6V-Ⅰ-0.4T (sigle button) | 6mm | 0.4mm | 8.4mm | 38mm | ∠a=50 | 8.5mm | 65Mn | nickel plated | 2.45~2.5 | ￠14-24mm |
| 6 | 6V-Ⅰ-0.5T (sigle button) | 6mm | 0.5mm | 8.4mm | 38mm | ∠a=50 | 8.5mm | 65Mn | nickel plated | 2.65~2.7 | ￠14-24mm |
| 7 | 6V-Ⅰ-0.5T (sigle button) | 6mm | 0.5mm | 7.3mm | 38mm | ∠a=50 | 8.5mm | Stainless steel | / | 2.65~2.7 | ￠14-24mm |
| 8 | 6V-Ⅱ-0.5T (double button) | 6mm | 0.5mm | 8.4mm | 38mm | ∠a=50 | 8.0mm | 65Mn | nickel plated | 2.85~2.9 | ￠18-24mm |
| 9 | 6V-Ⅱ-0.5T (double button) | 6mm | 0.5mm | 7.2mm | 45mm | ∠a =100~ 120 | 8.0mm | Stainless steel | / | 2.98~3.0 | ￠18-30mm |
| 10 | 7V-Ⅰ-0.5T (sigle button) | 7mm | 0.5mm | 9.6mm | 44mm | ∠a=50 | 9.0mm | 65Mn | nickel plated | 3.6~3.7 | ￠18-28mm |
| 11 | 7V-Ⅱ-0.5T (double button) | 7mm | 0.5mm | 9.6mm | 44mm | ∠a=50 | 9.0mm | 65Mn | nickel plated | 4.1~4.2 | ￠22-28mm |
| 12 | 8V-Ⅰ-0.5T (sigle button) | 8mm | 0.5mm | 10.8mm | 50mm | ∠a=50 | 9.5mm | 65Mn | nickel plated | 4.45~4.5 | ￠22-38mm |
| 13 | 8V-Ⅰ-0.5T (sigle button) | 8mm | 0.5mm | 10.3mm | 50mm | ∠a=50 | 9.0mm | Stainless steel | / | 4.45~4.5 | ￠22-38mm |
| 14 | 8V-Ⅱ-0.5T (double button) | 8mm | 0.5mm | 10.8mm | 50mm | ∠a=50 | 9.5mm | 65Mn | nickel plated | 4.85~4.9 | ￠24-34mm |
| 15 | 8V-Ⅰ-0.6T (sigle button) | 8mm | 0.6mm | 10.8mm | 50mm | ∠a=50 | 9.5mm | 65Mn | nickel plated | 4.65~4.7 | ￠22-38mm |
| 16 | 8V-Ⅱ-0.6T (double button) | 8mm | 0.6mm | 10.8mm | 50mm | ∠a=50 | 9.5mm | 65Mn | nickel plated | 4.95~5.1 | ￠24-40mm |
| 17 | 9V-Ⅰ-0.6T (sigle button) | 9mm | 0.6mm | 13mm | 60mm | ∠a=60 | 11.0mm | 65Mn | nickel plated | 7.6~7.9 | ￠30-50mm |
| 18 | 9V-Ⅱ-0.6T (double button) | 9mm | 0.6mm | 13mm | 60mm | ∠a=60 | 11.0mm | 65Mn | nickel plated | 8.8~9.1 | ￠40-60mm |
| 19 | 10V-Ⅰ-0.7T (sigle button) | 10mm | 0.7mm | 13mm | 60mm | ∠a=60 | 12.0mm | 65Mn | nickel plated | 9.8~9.9 | ￠40-60mm |
| 20 | 10V-Ⅱ-0.7T (double button) | 10mm | 0.7mm | 13mm | 60mm | ∠a=60 | 12.0mm | 65Mn | nickel plated | 9.8~9.9 | ￠40-60mm |
| Remark: 1.These spring clip used for all kind of round tube and square tube of diameter 6-50mm | |||||||||||
| 2.We can customize D6 and D8mm sigle and double botton with material sus304 | |||||||||||
Products Show:
Double Pin Spring Button Clip Push Button Clip Tent Pole Push Button Spring Clips For Camping Replacement
FAQ:
Q1: Are you a factory or a trading company?
A1: We are an OEM manufacturer of spring and stamping part with 15years.
Q2: Do you offer custom service?
A2: Yes, it's our job, send us your specification or drawings, and we will make you perfect products. Or tell us your idea for
getting a design from us.
Q3: How can I get a sample for quality check?
A3: After price confirmation, you can require for samples to check our product's quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
Q4: Could I ask for samples before the bulk production?
A4: Why not, we all concern the quality, and it's the way to get rid of getting poor quality.
Q5: Which methods of payment do you accept?
A5: T/T, L/C, Western Union, and Alibaba Trade Assurance.
Q6: What is your lead time?
A6: 3-7days for samples, 7-15days for mass production
